$120.00

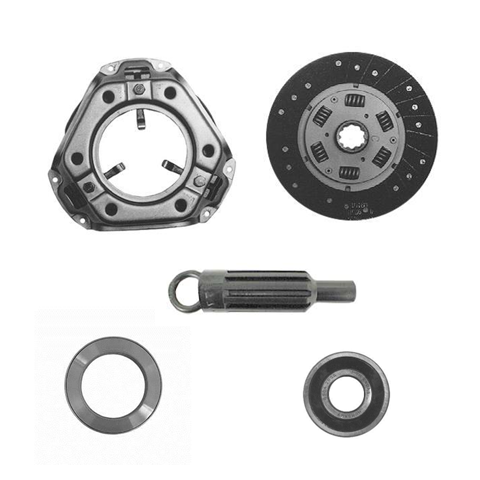

This Is a New 9” Single Stage Clutch Kit Assembly
The Kit Comes With
9” Single Stage Pressure Plate With 3 Levers 6 Springs
9” Woven Clutch Disc With 1-3/8” 10 Spline Hub
Release Bearing OD 3.500” ID 2.062” Thickness .750”
Pilot Bushing OD 1.5748” ID .6693” Thickness .4724”
Alignment Tool 1-3/8” 10 Spline Pilot Diameter 0.670”
10 in stock
This Is a New 9” Single Stage Clutch Kit Assembly
The Kit Comes With
9” Single Stage Pressure Plate With 3 Levers 6 Springs
9” Woven Clutch Disc With 1-3/8” 10 Spline Hub
Release Bearing OD 3.500” ID 2.062” Thickness .750”
Pilot Bushing OD 1.5748” ID .6693” Thickness .4724”
Alignment Tool 1-3/8” 10 Spline Pilot Diameter 0.670”
| Weight | 20 lbs |
|---|---|
| Dimensions | 12 × 12 × 4 in |
